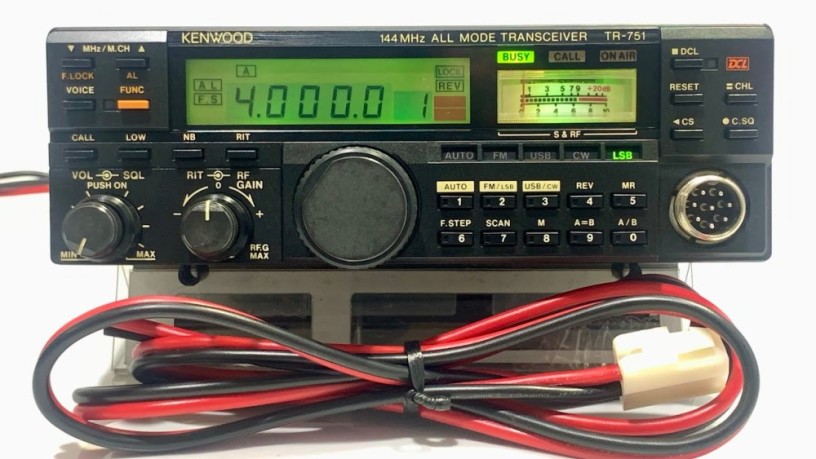

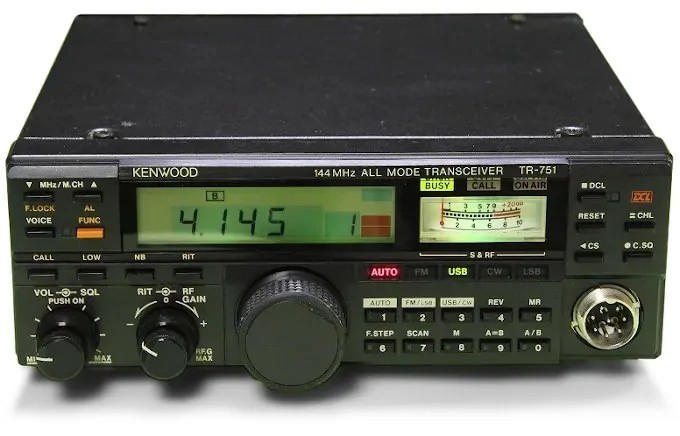

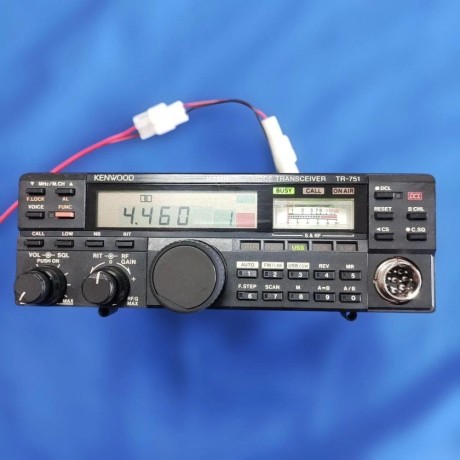

Kenwood TR-751E
Ατομικό- πριν 1 μέρα
- Ham Radio
- Piraeus
- 1 view
Reference: 3
450 €
Location: Piraeus
Price: 450 € Negotiable
SPECIFICATIONS
| GENERAL | |
| Type: | Amateur VHF transceiver |
| Frequency range: | Europe TX: 144-146 MHz RX: 144-146 MHz |
| Tuning steps: | FM: 5 / 12.5 KHz SSB/CW: 50 Hz, 1 / 5 KHz |
| Frequency stability: | ±15 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: | 10 regular 2 odd split 1 priority RAM storage with lithium battery backup |
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 1 A TX: Max 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*60*195 mm (7.09*2.36*7.68") |
| Weight: | 2.2 Kg (4.8 lb) |
| Other features: | NB. 1750 Hz tone call. DCL option. |
| RECEIVER SECTION | |
| Receiver system: | Single conversion superheterodyne (SSB/CW) IF: 10.695 MHz Double conversion superheterodyne (FM) 1st IF: 10.695 MHz 2nd IF: 455 KHz (FM) |
| Sensitivity: | SSB/CW: Better than 0.13 uV (10 dB S+N/N) FM: Better than 0.2 uV (12 dB SINAD) |
| Selectivity: | FM 12 KHz (-6 dB) 24 KHz (-60 dB) SSB/CW 2.2 KHz (-6 dB) 4.8 KHz (-60 dB) |
| Image rejection: | Better than 70 dB |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
| TRANSMITTER SECTION | |
| RF output power: |
HighLow 2 m: 25 W 5 W
|
| Modulation system: | FM: Reactance modulation SSB: Balanced modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
| MISCELLANEOUS | |
| Manufactured: | Japan, 1986-19xx (Discontinued) |
| Additional info: | |
| Related documents: |
|
